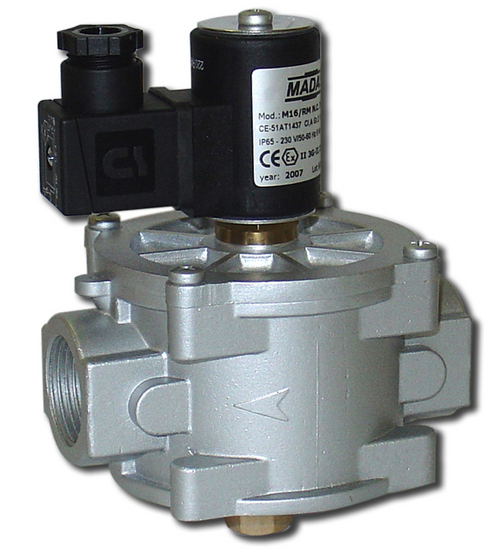

Manual Reset Gas Solenoid Valves

Manual Reset Gas Solenoid Valves
Manual Reset Gas Solenoid Valves
Product Code : SOLENOID VALVES
Product Description

Manual Reset Gas Solenoid Valves



  • Fast Closing Safety Feature of Solenoid Valves enhanced with Manual Reset System.

  • Ideal for Critical and Semi-Critical Safety Interlock applications which required Manual Intervention when a fault condition occurs.

  • Ideal to use as Safety Shut Off device with Gas Detectors, Over Limit Thermostat,

  • Pressure Switches and during Plant Blackout.

  • Simply powering up the Solenoid Coil does not open the valve. Opening of valve is possible only by hand.

  • High Pressure versions available for Max. 6 Bar Pressure rating .

  • Sizes available upto DN300.

  • Available with Closed Positions Feedback Switch.

M16/RMO N.C./ N.A. - M16/RM N.C. / N.A.

M14/RM N.C./ N.A.

  • Manual Opening Electrical Closing type Safety Shut Off Solenoid Valves

  • Available as both Normally Open (NO) and Normally Closed Version Ideal for Operating with Critical Safety Interlocks.

  • Sizes : DN15 to DN300

  • End Connections:

DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges

DN65 to DN300 : Flanged as per ISO7005 (PN16)

  • Coil Voltages : 12 VDC / 24 VDC or 12 / 24 /110 / 230 VAC

  • Versions M16/RMO N.C. / N.A. EEX - M16/RM N.C. / N.A. EEX have Ex-Proof Coils

  • Versions M16/RMO NA/NC can be used as both Normally Open and Closed type.

  • Body : Die Cast Aluminum

  • Maximum Working Pressure : 0.5 Bar or 6 Bar versions available.

  • Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003

  • Coil Protection : IP65

  • Closing time Less than 1 sec

  • Closed Position Indication Switch available as Option.

  • Versions available for Biogas and other select Gas Mixtures

  • Environment temperature rating : -20 to +60oC



Product conformance :

EC certifi ed according to EN 161

According to the 90/396/EEC Directive (Gas Directive)

6 bar versions According to the 97/23/EC Directive (PED Directive)

According to the 94/9/EC Directive (ATEX Directive)

According to the 2004/108/EC Directive (Electromagnetic Compatibility)

According to the 2006/95/EC Directive (Low Voltage)
