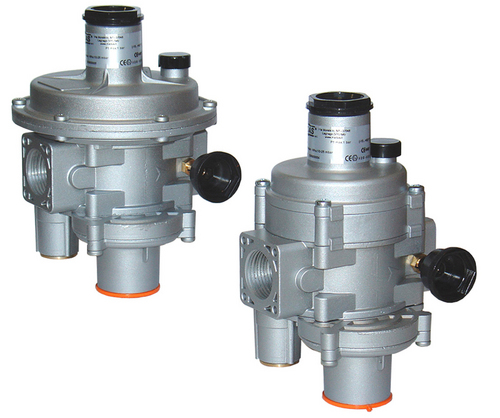

Natural Gas Pressure Regulators

Natural Gas Pressure Regulators
Natural Gas Pressure Regulators
Product Code : GAS PRESSURE REGULAT
Product Description

GAS PRESSURE REGULATORS WITH INBUILT SAFETY SHUT OFF:-

  • MADAS is one of the few suppliers of Gas Safety and Regulation Devices offering Gas Pressure Regulator with In-built Safety Shut function.

  • Integrated Safety Shut Off saves Space and cost.

  • No need to provide external Pressure Impulse for Safety Shut Off.

FRG/2MB MAX - RG/2MB MAX

Gas Pressure Regulators and Filter Regulators with Inbuilt Over Pressure Safety Shut Off

  • Sizes : DN20 to DN50

  • End Connections: Threaded as per EN10226 / Rotating Flanges

  • Maximum Inlet Pressure : 1 Bar or 2 Bar versions available.

  • Outlet Pressure Range : Settable between 9 to 600 mbar depending upon Regulator Size and Spring Range.

  • Closing time Less than 1 sec

  • Body : Die Cast Aluminum

  • Suitable for Natural Gas, LPG, Propane and other dry and non aggressive gases of the 3 families. As per EN437:2003

  • Versions available for Biogas and other select Gas Mixtures

  • Environment temperature rating : -20 to +60 oC

Product conformance :

In conformity with the 90/396/EEC Directive (Gas Directive)

In conformity with the 97/23/EC Directive (PED Directive)

In conformity with the 94/9/EC Directive (ATEX Directive)


FRG/2MBC â€â€œ FRG/2MBS
Gas Pressure Regulators with Inbuilt Over Pressure Safety Shut Off

  • Suitable to handle High Inlet Pressures

  • Sizes : DN15 to DN100

  • End Connections:

DN15 to DN50 : Threaded as per EN10226 / Rotating Flanges

DN65 to DN100 : Flanged as per ISO7005 (PN16)

  • Minimum Inlet Pressure : 0.5 Bar

  • Maximum Inlet Pressure :

DN15, DN20 and DN25 - 3 Bar or 5 Bar versions available.

DN32 to DN100 - 5 Bar Max.

  • Outlet Pressure Range : Settable between 9 to 800 mbar depending upon Regulator Size and Spring Range.

  • Versions available for Biogas and other select Gas Mixtures

  • Environment temperature rating : -20 to +60 oC

Product conformance :

EC certifi ed according to EN 88-2

In conformity with the 90/396/EEC Directive (Gas Directive)

In conformity with the 97/23/EC Directive (PED Directive)

In conformity with the 94/9/EC Directive (ATEX Directive)
